Please click CONTACT button above and read answers to Frequently Asked Questions before Emailing or telephoning with orders or questions. Commonly asked for Resistors available from KEN'S:revised July 2004

Resistive type Photo Cells

10807 Cadmium Sulphide Photo Cell 7MM size, 5000ohms=dark, 300ohms=bright

10910 Cadmium Sulphide Photo Cell 10MM size, 5000ohms=dark, 300ohms=bright

Surface Mount Resistors
(3 physical sizes =0603, 0805, 1206) NTE paks of 20 (specify resistance & size)	$0.96
standard resistances: (ohms) 1, 2.2, 4.7, 5.6, 10, 22, 33, 47 ohm,68, 100, 120, 150,
180, 220, 270, 330, 390, 470, 560, 680, 820, 1K, 1.2K ohm, 1.5K 1.8K, 2K, 2.2K,
2.7K, 2.2K, 3.9K, 4.7K, 10K, 15K, 22K, 47K, 100K, 220K, 240K, 1Meg,

Flameproof Resistors	(5 Million in stock)
Eighth-Watt flameproof resistors NTE paks (specify resistance needed)	$1.19
standard resistances: (ohms) 2.2, 4.7, 10, 15, 22, 33, 47, 51, 56, 75, 100, 120, 150
180, 220, 270, 330, 290, 470, 560, 620, 680, 1K, 1.2K, 1.5K 1.8K, 2K, 2.2K, 2.7K
3.3K, 2.9K, 4.7K, 6.8K, 8.2K, 10K, 15K, 18K, 20K, 22K, 33K, 47K, 56K, 68K, 82K,
100K, 150K, 200K, 220K, 1Meg
Quarter-Watt carbon resistors (WEP paks)	$1.98
Quarter-Watt flameproof resistors (NTE paks) (specify resistance)	$1.19
standard resistances: (ohms) 1, 10, 15. 22, 47, 56, 75, 100, 120, 150, 220, 270, 330, 390, 470, 510, 560, 680, 820, 1K, 1.2K, 1.5K, 1.8K, 2K, 2.2K, 2.7K, 3.3K, 6.8K, 8.2K, 10K,
15K, 18K, 20K, 22K, 27K, 33K, 47K, 100K, 220K, 1Megohm,
Half-Watt carbon resistors (WEP paks)	$1.98
Half-Watt flameproof resistors (NTE paks) (specify resistance)	$1.19
standard resistances: (ohms) .1, .15, .47, .51, .56, .68, 1, 1.2, 1.5, 2, 2.2, 2.4, 4.7,
5.6, 6.8, 7.5, 8.2, 9.1, 10, 12, 18, 22, 33, 47, 51, 56, 68, 75, 82, 91, 100, 110,
123, 150, 180, 200, 220, 240, 270, 330, 430, 470, 510, 560, 680, 820, 910, 1K,
1.1K, 1.2K 1.5K, 1.8K, 2K, 2.2K, 2.4K, 2.7K, 3.3K, 3.9K, 4.3K, 4.7K. 5.1K, 5.6K,
6.2K, 6.8K, 7.5K, 8.2K, 9.1K, 10K, 11K, 12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K,
27K, 30K, 33K, 43K, 47K, 51K, 56K, 62K, 68K, 75K, 82K, 91K, 100K, 110K, 120K,
150K, 180K, 220K, 240K, 270K, 330K, 390K. 430K, 470K, 510K, 560K, 1Meg,
One-Watt carbon resistors (WEP paks)	$1.98
One-Watt flameproof resistors (NTE paks) (specify resistance)	$1.39
standard resistances: (ohms) .1, .25, .22, .33, .39, .47, .56, .68, 1, 1.2, 1.5, 2, 2.2,
2.4, 4.7, 5.1, 5.6, 6.8, 7.5, 8.2, 9.1, 10, 12, 18, 22, 24, 33, 39, 47, 56, 68,
75, 82, 91, 100, 110, 120, 150, 180, 200, 220, 240, 270, 330, 430, 470, 510, 560,
680, 820, 910, 1K, 1.1K, 1.2K, 1.5K, 1.8K, 2K, 2.2K, 2.7K, 3.3K, 3.6K, 4.3K, 4.7K,
5.1K, 5.6K, 6.2K, 6.8K, 7.5K, 8.2K, 9.1K, 10K, 11K, 12K, 13K, 15K, 16K, 18K, 20K,
22K, 24K, 27K, 30K, 33K, 43K, 47K, 51K, 56K, 62K,68K, 75K, 82K, 91K, 100K, 110K,
120K, 150K, 180K, 220K, 240K, 270K, 330K, 390K, 430K, 470K, 510K, 560K, 910K, 1M,
1.2M, 1.5M, 1.8M, 2.2M, 2.4M, 3.3M, 4.7M, 6.8M, 10M, 22M,	$1.39
Two-Watt carbon resistors (WEP paks)	$1.98
Two-Watt flameproof resistors (NTE paks) (specify resistance)	$1.39
standard resistances: (ohms) .1 ,15, .22, .33, .47, .56, .68, 1, 1.5, 2, 2.2, 2.4, 3.9,
4.7, 5.6, 6.8, 7.5, 8.2, 9.1, 10, 12, 15, 18, 20, 22, 30, 33, 39, 47, 51, 56, 75,
82, 91, 100, 110, 120, 130, 150, 180, 200, 222, 240, 270, 330, 430, 470, 510, 560,
680, 820, 910, 1K, 1.1K, 1.2K, 1.5K, 1.8K, 2K, 2.2K, 2.4K, 2.7K, 3.3K, 3.6K,
4.3K, 4.7K, 5.1K, 5.6K, 6.2K, 6.8K, 7.5K, 8.2K, 9.1K, 10K, 11K, 12K, 13K, 15K,
16K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 43K, 47K, 51K, 56K, 62K, 68K, 75K, 82K,
91K, 100K, 110K, 120K, 150K, 180K, 220K, 240K, 270K, 330K, 390K, 430K, 470K, 510K,
560K, 910K, 1M, 1.2M, 1.5M, 1.8M, 2.2M, 2.4M, 3.3M, 4.7M 6.8M, 10Megohm

Three-Watt flameproof resistors (NTE paks) (specify resistance needed)	$1.98
standard resistances: (ohns) 1, 1.2, 1.5, 1.8, 2.2, 2,7, 3.3, 3.9, 5.1, 6.8. 9.2, 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82, 100, 120, 150, 180, 220, 270, 330, 390, 470, 560, 680, 820, 1K, 1.2K, 1.5K, 2K, 2.7K, 3.3K, 3.9K, 4.7K, 5.6K, 6.8K, 8.3K, 10K, 12K, 15K, 22K, 27K, 39K, 47K, 68K, 100K

Wirewound Power Resistors
Dual Five-Watt emitter bias resistors (each)	$1.98
Five-Watt wirewound resistors (NTE 2/paks) (specify resistance needed)	$1.98
standard resistances: .1, .22, .27, .33, .47, 1, 1.5, 2.2, 2.7, 3.3, 3.9, 4.7, 5
5.1, 6.8, 8.2, 10, 15, 22, 27, 33, 39, 47, 56, 100, 150, 220, 270, 560, 1K, 4.7K, 10K
Ten-Watt wirewound resistors (NTE 2/paks) (specify resistance needed)	$1.98
standard resistances: .33, 1, 1.5, 2, 2.2, 2.7, 3.3, 3.9, .7, 5.1, 6.8, 8.2, 10,
12, 15, 22, 33, 47, 68, 100, 150, 180, 220, 270, 330, 1K, 2.2K, 3.3K, 4.7K, 5K, 7K-bulk, 10K
Twenty-Five Watt wirewound resistors (NTE 1/pak) (specify resistance needed)	$1.99
standard resistances: 1, 1.2, 1.5, 2, 2.2, 2.7, 3, 3.3, 3.0, 4.7, 5.1, 6.8, 8.2,
10, 15, 20, 27, 30, 39, 47, 75, 100, 150, 180, 220, 270, 470, 1K, 1.2K, 1.5K,

testing SRS module for Airbag sensor: manufacturer specifies a 2.2 ohms 66 Watt resistor;
use (4) 25W 2.2 ohm resistors connected in series/parallel for adequate wattage.

Automobile Repair Tip: Many 1990's thru 2008 GM cars have "Anti-Theft" ignition key pellet resistors

Worn-out ignition locks & aftermarket remote starters require bypassing the ignition key resistor

Pellet Code	Key Resistance	use these (1/4 or 1/2W) resistors (in series)
#1	402 ohms	use 390 ohms
#2	523 ohms	use 470 + 56 ohms
#3	681 ohms	use 680 ohms
#4	887 ohms	use 820 + 68 ohms
#5	1130 ohms	use 1K + 120 ohms
#6	1470 ohms	use 1K + 470 ohms
#7	1870 ohms	use 1.8K + 68 ohms
#8	2370 ohms	use 2.2K + 180 ohms
#9	3010 ohms	use 2.2K + 820 ohms
#10	3740 ohms	use 3.3K + 220 + 220 ohms
#11	4750 ohms	use 4.7K + 47 ohms
#12	6040 ohms	use 3.3K + 2.7K + 39 ohms
??	6300 ohms	use 3.3K + 2K + 1K
#13	7500 ohms	use 3.3K + 3.3K + 890 ohms
??	9600 ohms	use 8.2K + 1.2K + 200 ohms
#15	11,770 ohms	use 5.6K + 5.6K + 560 ohms

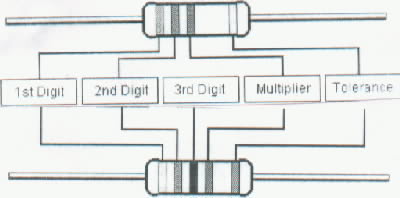

Free Technical Repair Tip Identifying Resistors:
Carbon and FlameProof resistors are marked with COLOR CODES. The first two color bands are the first two digits; the third color band is the "multiplier" and the fourth color band (if present) is the tolerance. Carbon Resistors that have no fourth color band are 20% tolerance.
Black = 0
Brown = 1
Red = 2 (also used for 2% tolerance)
Orange = 3
Yellow = 4
Green = 5
Blue = 6
Violet = 7
Gray = 8
White =9
Gold (as multiplier = 1/10; as tolerance = 5%)
Silver (as mulitplier = 1/100; as tolerance =10%)
Example: Green (5), Black (0), Silver (X.01) = .5 ohm
Example: Yellow (4), Violet (7), Gold (X.1) = 4.7 ohm
Example: Brown (1), Black (0), Red (add 2 "Zeros" as multiplier) = 1000 ohm
